7 Best Pipe Flange Types for Global Buyers?

Global buyers choosing a pipe flange must match the connection to pressure, temperature, fluid, and maintenance needs. A raised-face flange may suit one service, while a ring-type joint may be specified for demanding conditions. The right choice also depends on the piping standard, material grade, and mating dimensions. Small mismatches matter.

Grand View Research valued the global pipe fittings market at approximately USD 14.97 billion in 2022 and forecast continued growth through 2030. That figure covers pipe fittings broadly, not flanges alone, so it should not be read as a flange-market estimate. Still, it reflects the scale of the industrial supply chain buyers navigate. ASME B16.5 and ISO 7005 provide important dimensional and pressure-class references, but procurement teams should confirm which standard the project specifies.

Bolted-joint authority John H. Bickford’s published work offers a useful reminder: connection reliability depends on bolt preload and assembly practice, not flange selection alone. This is a paraphrase, not a direct quotation. Details matter. A well-specified flange can still leak if the gasket, bolts, or installation procedure are wrong.

This guide compares seven common pipe flange types, including weld neck, slip-on, socket weld, threaded, lap joint, blind, and loose flanges. It focuses on practical trade-offs: installation space, inspection access, pressure service, and maintenance. No type wins everywhere. Buyers should verify dimensions, materials, and documentation against the project specification before placing an order.

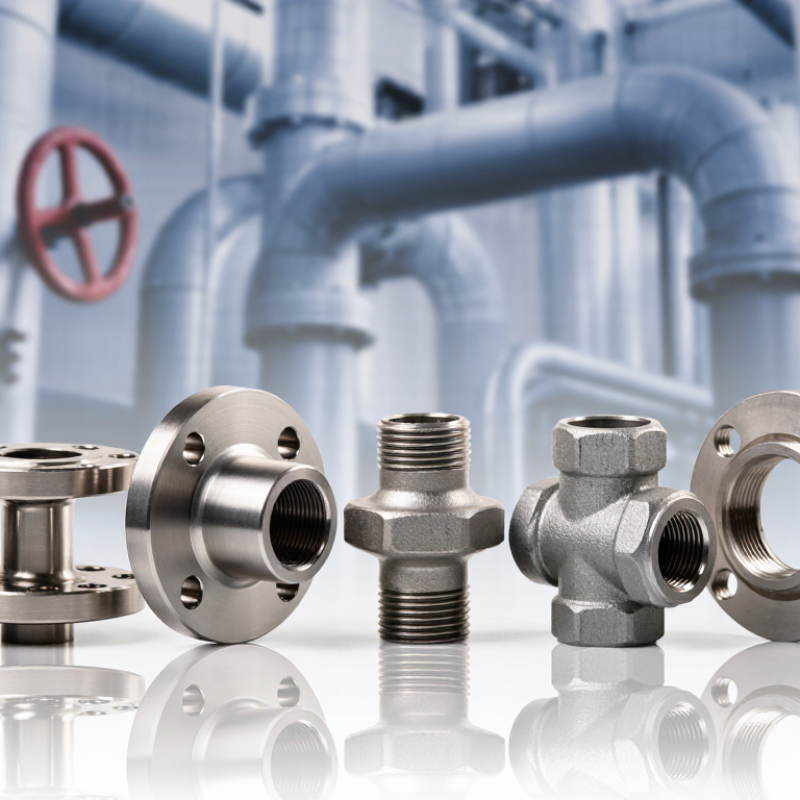

7 Best Pipe Flange Types for Global Buyers?
Table of Contents [Hide]
1 What Pipe Flanges Are and How They Connect Piping Systems
2 Key Factors Global Buyers Should Consider When Choosing Flanges
3 Seven Common Pipe Flange Types and Their Main Applications
4 Materials, Pressure Ratings, and International Standards
5 How to Match a Flange Type to Project Requirements

What Pipe Flanges Are and How They Connect Piping Systems

Pipe flanges are bolted connection points between pipes, valves, pumps, and other equipment. A flange uses a gasket between two raised or flat faces. Bolts then create controlled compression. This joint can be opened for inspection, cleaning, or replacement without cutting the pipe.

The seven common types serve different connection needs. Weld neck flanges suit high-pressure lines because their tapered hubs reduce stress. Slip-on flanges slide over the pipe and offer simpler field alignment. Socket weld flanges fit smaller, higher-pressure piping. Threaded flanges avoid welding, but they need accurate threads and compatible service conditions. Lap joint flanges support frequent dismantling. Blind flanges close pipe ends or equipment nozzles. Orifice flanges support flow-measurement assemblies.

Size alone does not define a safe flange connection. ASME B16.5 covers NPS 1/2 through 24 and pressure Classes 150 through 2500. For larger systems, ASME B16.47 covers NPS 26 through 60. These standards provide dimensions, bolt patterns, pressure-temperature ratings, and facing details. Installation still depends on gasket selection, bolt lubrication, alignment, and cross-pattern tightening. Small errors matter. A misaligned flange may stress the gasket before service begins. Field teams should verify material grades, temperature limits, and torque records against the project specification. I would not treat a familiar flange face as automatically suitable; real piping conditions often expose that assumption.

Key Factors Global Buyers Should Consider When Choosing Flanges

7 Best Pipe Flange Types for Global Buyers?

Choosing among weld neck, slip-on, socket weld, threaded, lap joint, blind, and orifice flanges requires more than comparing prices. Confirm the required pressure class, temperature range, pipe size, and operating medium. A weld neck flange suits demanding cyclic service, while a blind flange isolates a pipeline end. Threaded flanges can simplify installation, but they may be unsuitable for severe vibration or high-temperature systems. Small details matter.

Material selection deserves equal attention. Carbon steel may fit dry industrial service, while stainless steel or alloy materials can better resist moisture, chemicals, or elevated heat. Check the flange facing, gasket compatibility, bolt grade, and corrosion allowance together. A raised face is not automatically correct for every gasket design. Verify dimensions against the project standard, such as ASME, EN, or JIS, and never assume two standards are interchangeable. That mistake is expensive.

Reliable purchasing also depends on documentation. Request material test reports, pressure-test records, dimensional inspection results, heat numbers, and clear marking on each flange. Confirm the supplier’s quality system and packaging method, especially for long-distance transport. Poorly protected sealing faces can arrive scratched or rusted. In practice, the cheapest quotation may become the costliest choice after delays and rework. I still recommend checking the final selection with a qualified engineer, because service conditions are often described too simply in purchasing documents.

7 Pipe Flange Types: Why Pressure Class Matters

ASME B16.5 pressure ratings for ASTM A105 forged carbon-steel flanges at 100°F

Buyer note: Weld neck, slip-on, socket weld, threaded, lap joint, blind, and orifice flanges serve different connection and service needs. Select the flange type and pressure class to match the piping standard, material, temperature, and design conditions.

Ratings shown are in psi and apply to the stated material and temperature; allowable ratings vary with material group and temperature. Reference: ASME B16.5.

Seven Common Pipe Flange Types and Their Main Applications

7 Best Pipe Flange Types for Global Buyers?

Seven Common Pipe Flange Types and Their Main Applications

A flange choice should follow pressure, temperature, maintenance access, and pipe material. Weld neck flanges suit high-pressure steam, oil, and gas lines because their tapered hub reduces stress. Slip-on flanges install quickly on water, air, and moderate-pressure utility systems. They are economical, but welding quality still matters. Field alignment is rarely perfect.

Socket weld flanges work well on small-bore, high-pressure piping, especially hydraulic and chemical lines. Threaded flanges avoid welding and fit low-risk services where the pipe wall and threads remain compatible.

Socket weld flanges work well on small-bore, high-pressure piping, especially hydraulic and chemical lines. Threaded flanges avoid welding and fit low-risk services where the pipe wall and threads remain compatible. Lap joint flanges pair with stub ends in stainless or lined systems. They help frequent dismantling, such as in food, pharmaceutical, and corrosive-process equipment. Fit matters.

Blind flanges close valves, vessel nozzles, and inactive branches. Orifice flanges support flow measurement and usually include pressure-tapping points. A careless selection can create leakage, vibration, or difficult maintenance.

The ASME B16.5 standard covers common flange dimensions, ratings, and facing details, while EN 1092-1 is widely used in European projects. Global buyers should verify both the governing code and local certification requirements.

Energy infrastructure keeps these choices relevant. The International Energy Agency’s World Energy Outlook 2024 reports that LNG liquefaction capacity under construction could raise global capacity by almost 50% by 2030. That growth increases demand for reliable connections in cryogenic and high-pressure systems. However, “best” is not universal. Gasket material, bolt loading, corrosion allowance, and inspection records can change the final decision. Measure twice.

Materials, Pressure Ratings, and International Standards

7 Best Pipe Flange Types for Global Buyers?

The seven common flange types are weld neck, slip-on, blind, socket weld, threaded, lap joint, and orifice flanges. Weld neck flanges suit demanding pipelines because their tapered hubs reduce stress concentration. Slip-on flanges install easily, but their lower welding depth may limit high-temperature applications. Blind flanges close pipes during maintenance or future expansion. Socket weld designs fit smaller, higher-pressure lines. Threaded flanges avoid welding, yet require careful thread inspection. Lap joint flanges support frequent dismantling. Orifice flanges help measure flow with differential-pressure instruments.

Material selection should match corrosion, temperature, and mechanical loading. Carbon steel is common for general water and process service. Stainless steel handles many corrosive fluids, but chloride exposure still needs careful review. Alloy steel may perform better at elevated temperatures. Material certificates should identify chemical composition, heat treatment, and applicable ASTM specifications. Small documentation gaps can become costly delays.

Pressure ratings need equal attention. Class 150, 300, and 600 are not direct pressure values across every material and temperature. EN pressure classes, JIS nominal pressure, and ASME classes may look similar but are not interchangeable. Check ASME B16.5, EN 1092-1, JIS B2220, or ISO 7005 against the project specification. Bolt holes, facing dimensions, gaskets, and pipe outside diameters must also match. A flange can fit visually and still fail inspection. That is an easy mistake to underestimate.

7 Best Pipe Flange Types for Global Buyers: Materials, Pressure Ratings, and International Standards

Flange Type Typical Design and Use Common Materials Pressure Rating Reference Relevant Standards Buyer Considerations
Weld Neck Has a tapered hub and is butt-welded to the pipe. Often selected for demanding services, cyclic loading, and larger or higher-pressure piping systems. Carbon steel, low-alloy steel, stainless steel, and nickel alloys, subject to the applicable material specification. Common ASME class designations include 150, 300, 600, 900, 1500, and 2500. These are class designations, not fixed pressure values; allowable pressure depends on material and temperature. ASME B16.5 for NPS ½–24; ASME B16.47 for larger NPS sizes. EN 1092-1 is a common European flange standard. Confirm pipe schedule, bore, facing, material grade, and the governing pressure-temperature table.
Slip-On Slides over the pipe and is typically attached with fillet welds. Common in general-purpose piping where installation simplicity is useful. Carbon steel, stainless steel, and other available forged or plate materials specified for the application. Commonly supplied in ASME Classes 150 through 1500, depending on size and specification. The applicable rating must be checked against material and temperature. ASME B16.5; EN 1092-1. Dimensions and drilling patterns must match the selected system. Check weld access, corrosion allowance, and whether the design code permits this connection for the service.
Socket Weld The pipe end fits into a recessed socket and is secured by a fillet weld. Typically used for smaller-bore piping. Carbon steel, stainless steel, and alloy steel, selected to suit the fluid, temperature, and design code. Common ASME classes include 150, 300, 600, 1500, and 2500 for applicable sizes. Actual pressure-temperature limits vary by material and size. ASME B16.5; commonly used with ASME B16.11 socket-weld components. European systems may use EN 1092-1 flanges where specified. Confirm the pipe insertion gap and welding requirements; socket-weld fittings are generally used for smaller nominal pipe sizes.
Threaded Connects to a pipe with matching threads and avoids field welding. Often used where welding is impractical or restricted. Carbon steel, stainless steel, and other materials available under the specified product standard. May be available in several ASME class designations, including 150 through 2500 for applicable sizes. Thread capacity and system limits must also be considered. ASME B16.5 for flanges; thread forms and dimensions must be specified consistently, such as NPT or ISO metric pipe threads where applicable. Verify thread standard, sealing method, vibration exposure, and suitability for the fluid and service conditions.
Lap Joint Used with a stub end; the backing flange rotates around the pipe, helping with bolt-hole alignment and disassembly. Backing flanges are commonly carbon steel; stub ends are selected in a material compatible with the process fluid and piping. Commonly supplied in ASME classes such as 150, 300, and 600, subject to size and material limits. The stub end and backing flange must form a compatible assembly. ASME B16.5 and ASME B16.9 for applicable components; EN 1092-1 systems may use compatible loose flanges and stub ends. Consider the material and corrosion resistance of the wetted stub end, as well as the assembled pressure-temperature rating.
Blind A solid flange used to close a pipe end, valve opening, or pressure-vessel nozzle. It can also provide access for inspection or future expansion. Carbon steel, stainless steel, low-alloy steel, and other specified materials. Common ASME class designations include 150 through 2500. Blind-flange capacity depends on size, material, temperature, and the applicable standard. ASME B16.5 for NPS ½–24; ASME B16.47 for larger sizes; EN 1092-1 for European PN-designated systems. Check the design pressure, temperature, gasket seating surface, bolt set, and whether the flange is intended for repeated opening.
Orifice A flange assembly with provisions for an orifice plate and pressure taps, used for differential-pressure flow measurement. Flange and pressure-tap materials are selected to match the piping specification; stainless steel is also commonly used for corrosion resistance. Often specified using ASME class designations such as 300, 600, or higher where required. Rating is determined by the flange standard, material, size, and temperature. ASME B16.36 for orifice flanges; ASME B16.5 applies to relevant flange dimensions and pressure-temperature ratings. Specify tap arrangement, orifice plate details, gasket arrangement, and compatibility with the flow-measurement design.

Important: ASME Class and EN PN designations are not directly interchangeable. Pressure ratings depend on flange size, material group, temperature, and the governing code. Confirm dimensions, facing, drilling, material certificates, and the applicable pressure-temperature limits before ordering.

How to Match a Flange Type to Project Requirements

7 Best Pipe Flange Types for Global Buyers?

How to Match a Flange Type to Project Requirements

Selecting a pipe flange starts with the system, not the catalog. Check pressure, temperature, pipe size, fluid, and connection method. Weld neck flanges suit high-pressure lines and repeated thermal cycles because their tapered hub reduces stress. Slip-on flanges are easier to install and often reduce fabrication costs. However, alignment and weld quality still matter.

For smaller branch lines, socket weld flanges provide a clean internal connection when welding access is limited. Threaded flanges can work where welding is unsuitable, but vibration and pressure require careful evaluation. Lap joint flanges help systems that need frequent dismantling, especially around inspection points. They are practical, not universal.

Blind flanges close pipe ends during operation, testing, or future expansion. Orifice flanges support flow measurement and need accurate machining around the opening. Match each option with the project standard, such as ASME, EN, or JIS requirements. Confirm pressure class, facing, gasket type, bolt material, and corrosion resistance before ordering. Small details cause large delays.

Ask for dimensional drawings, material certificates, inspection records, and traceability documents. A low-cost flange may become expensive after field corrections. I have seen that happen. Do not assume two standards are interchangeable, even when dimensions appear similar. Recheck the flange against the actual pipe schedule and service conditions before approval.
